System Control
- Utilizes a heat and pressure sensitive touchpad to control system.
- Contact area is large enough to provide access to handicapped and hands full users.
- User interface provides a diagonstic display that indicates problems.

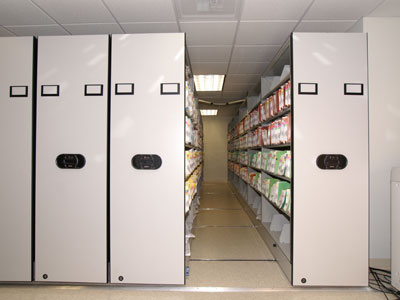

Our HD5 Storage Systems have carriages made of a special 6061 structural grade aluminum extrusion with a 5/8" retaining lip. Carriages are fully welded in a jig to insure they are straight and square. Carriages have a 1000 pound per foot capacity, 5" dual flanged guide wheels with a capacity of 7000 pounds per wheel assembly. Drive wheels are connected to a continuous 1" solid steel drive shaft the carriages ride on a special aluminum extrusion fitted with a 3/4" 1045 carbon steel bar. Carriages are available up to 60" wide and 50" long and are custom made to fit any sturdy shelving or other storage products.
End panels are available in both high and low pressure laminates with steel end panels available as an optional accessory. Mechanical assist carriages have a heavy duty crank assembly and safety lock standard with several other optional features available. Manual carriages have a 9" aluminum pull handle. Several floor & decking options are available.
System Control
Carriage Movement System
Carriage Stopping Control
Safety Systems
High grade aluminum carriages with 1000lbs per foot capacity, solid steel drive system with sealed and lubricated bearings.
Carriages are made of special 6061 structural grade aluminum with a 5/8? retaining lip.
Recessed shelving mount, fully supported and interlocking drive panels,optional in rail & overhead antitips ,safety sweep and carriage safety lock.
Carriages are fully welded in a jig with factory installed precision drive and guide system components.
Standard Features
Optional Features
We are specialized in building custom Shelving based on your needs and we provide end to end Services including Space Planning, Product Designing and Installation with a dedicated Customer Service Rep.
Please call us at 630-748-8099 or email us at sales@mobilefilingsystems.com for more details or an estimate.
